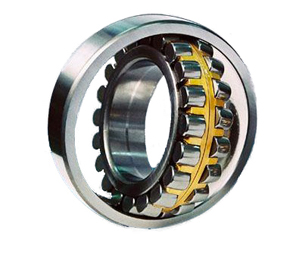

Product name：Spherical Roller Bearings

Product number：

Detailed introduction

Features:
a、Low speed, high resistance to impact, vibration
b、able to self-align
c、mainly bear big radial load
d、can bear fair axial load

Application
Metallurgical and mineral machineries, construction machineries, hoisting and conveying machineries, paper machineries, textile machineries, etc

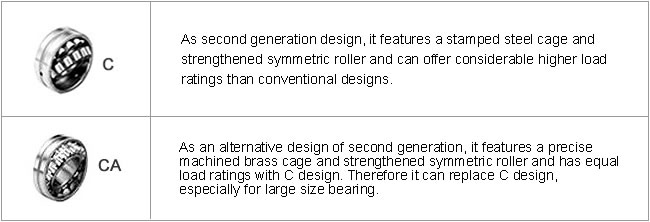

Spherical roller bearing different designs

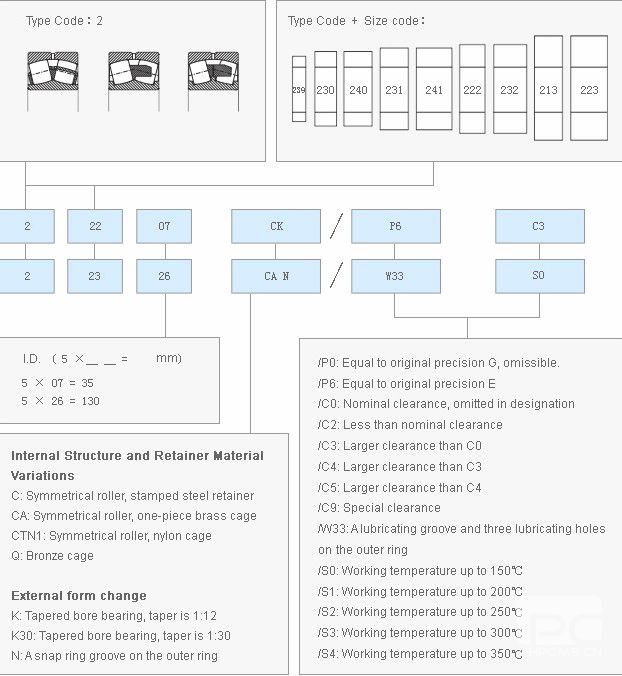

Type Code

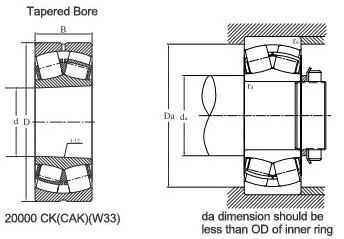

Profile Sub-plan

Dimension and Parameters

Bearing No.		Dimensions			Basic Load		Basic Load		Weight	Shoulder Dia
Bearing No.		(mm)			Ratings (Kn)		Ratings ((Kn)		(kg)	(mm)
New	Old	d	D	B	Cr	Cor	Grease	Grease	wt	da(min)	Da(max)	Da(max)
22310 C	53610	50	110	40	181	208	3200	4300	1.87	59	101	2
22211 CA	53511 H	55	100	25	102	119	4100	5400	0.849	63	92	1.5
22211 C	53511	55	100	25	102	119	4100	5400	0.849	63	92	1.5
21311 CA	-	55	120	29	141	152	2800	3700	1.66	65	110	2
22311 CA	53611 H	55	120	43	213	248	3000	3900	2.43	65	110	2
22311 C	53611	55	120	43	213	248	3000	3900	2.43	65	110	2
22212 CA	53512 H	60	110	28	127	154	3700	4900	1.2	68	102	1.5
22212 C	53512	60	110	28	127	154	3700	4900	1.2	68	102	1.5
21312 CA	-	60	130	31	165	175	2500	3400	1.99	70	120	2.1
22312 CA	53612 H	60	130	46	243	284	2700	3600	3.01	70	120	2.1
22312 C	53612	60	130	46	243	284	2700	3600	3.01	70	120	2.1
22213 CA	53513 H	65	120	31	151	188	3400	4600	1.61	74	111	1.5
22213 C	53513	65	120	31	151	188	3400	4600	1.61	74	111	1.5
21313 CA	-	65	140	33	186	197	2300	3100	2.45	76	129	2.1
22313 CA	53613 H	65	140	48	251	291	2500	3400	3.53	76	129	2.1
22313 C	53613	65	140	48	251	291	2500	3400	3.53	76	129	2.1
22214 CA	53514 H	70	125	31	155	193	3200	4300	1.68	79	116	1.5
22214 C	53514	70	125	31	155	193	3200	4300	1.68	79	116	1.5
21314 CA	-	70	150	35	206	223	2200	2900	2.98	81	139	2.1
22314 CA	53614 H	70	150	51	300	362	2400	3100	4.37	81	139	2.1
22314 C	53614	70	150	51	300	362	2400	3100	4.37	81	139	2.1
22215 CA	53515 H	75	130	31	161	204	3100	4100	1.77	84	121	1.5
22215 C	53515	75	130	31	161	204	3100	4100	1.77	84	121	1.5
21315 CA	-	75	160	37	249	270	2100	2700	3.63	87	148	2.1
